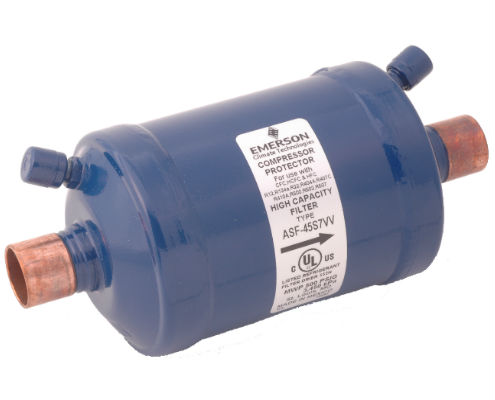

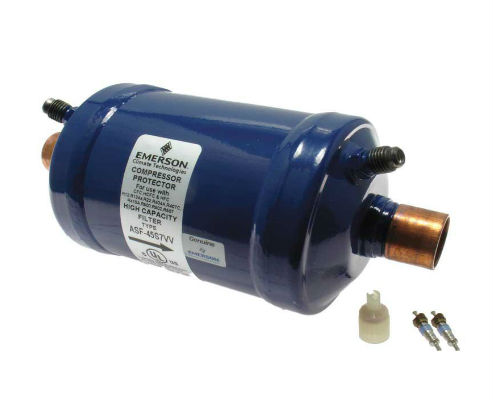

ASF Suction Line Filter

The ASF is a specifically designed filter to protect the compressor from dirt and all solid contaminants.

ASF Suction Line Filter Features :

• Dual access valves for easy pressure readings

• Solid copper connections

• Corrosion resistant epoxy powder paint finish

• Full copper fittings – easy to sweat in

• Rugged steel shells for shock resistance

• Low pressure drop – full flow fittings

ASF Suction Line Filter Specifications :

  • Filtration : 40 microns
  • Maximum working pressure : 500 psig
  • Burst pressure : 2500 psig
